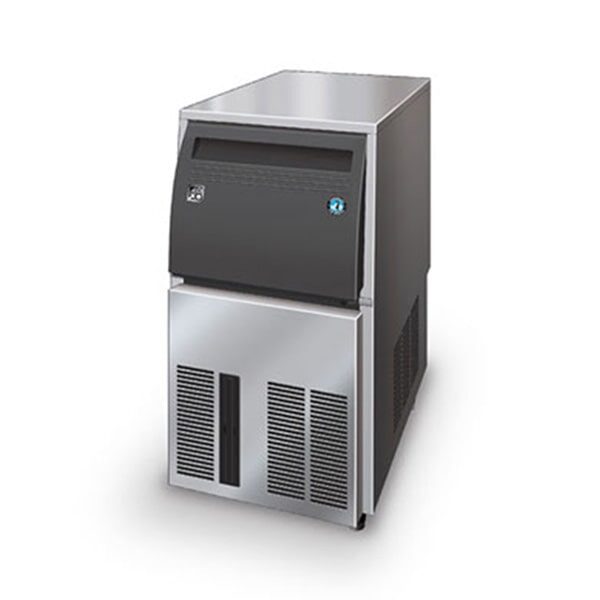

MODEL NAME: IM-30CA
ICE DIMENSIONS (WxDxH): 28 x 28 x 32 mm
DIMENSIONS (WxDxH): Body : 398 x 510 x 695 mm /
Leg Height : 90-120 mm
PACKED DIMENSIONS (WxDxH): 490 x 610 x 880 mm
WEIGHT (NETT/GROSS): 39 KG / 49 KG
AMPERAGE / STARTING AMPERAGE: 1.7A / 9A
ELECTRICAL CONSUMPTION: 250 W
REFRIGERANT CHARGE: R134a
HEAT REJECTION (AT32°C/WT21°C): 520 W (447 kcal/h)
ICE PRODUCTION PER 24H (15MM): (AT10°C/WT10°C) 30 KG
(AT21°C/WT15°C) 28 KG
(AT32°C/WT21°C) 25 KG
WATER CONSUMPTION PER 24H (AT21°C/WT15°C): 0.07 m3
2.5L / 1KG ICE
ICE PRODUCTION (AT21°C/WT15°C): FREEZE CYCLE TIME 21 MIN
PER CYCLE  0.4 KG / 18 PCS
STORAGE CAPACITY: 12 KG
