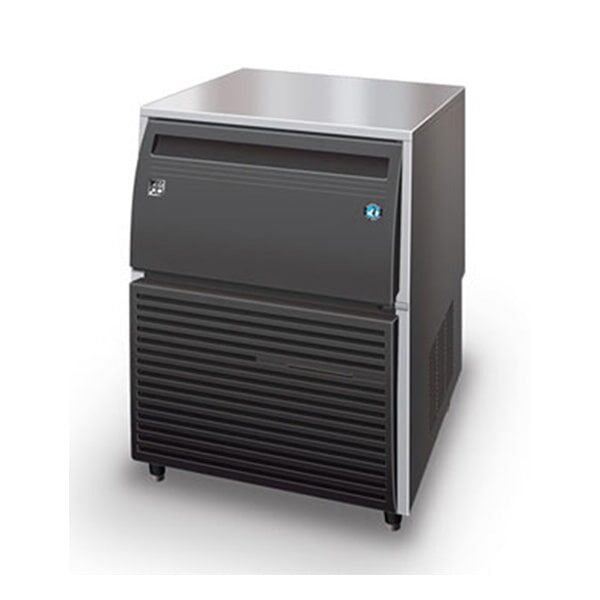

IM-45CA

IM-45CA

BRAND:HOSHIZAKI

Product Detail

  • MODEL NAME: IM-45CA
  • ICE DIMENSIONS: (WxDxH) 28 x 28 x 32 mm
  • DIMENSIONS(WxDxH): Body : 660 x 570 x 695 mm /Leg Height : 90-120mm
  • PACKED DIMENSIONS (WxDxH): 760 x 680 x 880 mm
  • WEIGHT (NETT/GROSS): 52 KG / 65 KG

Share this product

  • MODEL NAME: IM-45CA
  • ICE DIMENSIONS: (WxDxH) 28 x 28 x 32 mm
  • DIMENSIONS(WxDxH): Body : 660 x 570 x 695 mm /Leg Height : 90-120mm
  • PACKED DIMENSIONS (WxDxH): 760 x 680 x 880 mm
  • WEIGHT (NETT/GROSS): 52 KG / 65 KG
  • AMPERAGE / STARTING AMPERAGE: 2.0A / 16A
  • ELECTRICAL CONSUMPTION: 310 W
  • REFRIGERANT CHARGE: R134a
  • HEAT REJECTION (AT32°C/WT21°C) 670 W (576 kcal/h)
  • ICE PRODUCTION PER 24H (15MM) (AT10°C/WT10°C) 47 KG
  • (AT21°C/WT15°C) 44 KG
  • (AT32°C/WT21°C) 38 KG
  • WATER CONSUMPTION PER 24H (AT21°C/WT15°C) 0.12 m3
  • 2.7L / 1KG ICE
  • ICE PRODUCTION (AT21°C/WT15°C) FREEZE CYCLE TIME 23 MIN
  • PER CYCLE 0.67 KG / 30 PCS
  • STORAGE CAPACITY: 15 KG

OPERATING CONDITIONS

Voltage Range: ±6% • Ambient Temperature: 1°-40°C• Water Supply: 5°-35°C / 0.07-0.8 Mpa / 7.25-116 PSI • AC Supply Voltage: 1/220-

WARRANTY

Two years parts & labour for entire unit, 3rd year
