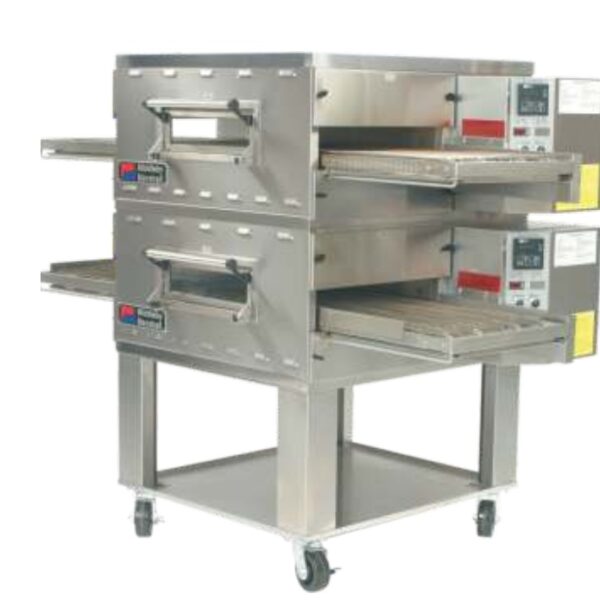

PIZZA OVEN – CONVEYOR PS-536G

PIZZA OVEN – CONVEYOR PS-536G

MODEL- PS- 536G

  • Conserves Energy
    Unit incorporates a patented Energy Management System – EMS. Middleby ovens provide very efficient heat transfer to product. Energy is conserved as air is recycled from heater to product, with minimum loss. Oven is cool to the touch.
  • Clean ability
    These Ovens are designed for easy cleaning. Removable parts include: crumb pans, end panels, air fingers, exit tray, and a removable conveyor belt assembly.
  • Easily Services
    Control compartment is designed for quick and easy access

BRAND: MIDDLEBY MARSHALL

SKU: PCOH01 Category:

Share this product

  • Patented EMS Energy Management System, reduces gas consumption and increases cooking efficiency
  • 36” (914mm) long cooking chamber with 18”(457.2mm) wide 60”(1524mm) long conveyorbelt
  •  Stackable up to three high.
  •  Patented “Jet Sweep” impingement process that delivers constant heat to the chamber
  •  Microprocessor-controlled bake time/conveyor speed
  • Customer-specific adjustable jet fingers that allow control of heating zones in 8”(203mm)zones
  •  Stainless steel front, sides, top and interior
  •  Front-loading window with cool handle
  • Reversible conveyor direction

Technical Specifications

  • Dimension (WxDxH) mm- 1930x1010x1105
  • BTU/input power (KW)-75,000 BTU
  • ELECTRICALS-240V/50Hz/1Ph
  • HEATING ZONE- 36” (915mm)
  • BAKING AREA-4.5sq feet
  • BELT LENGTH-60” (1524mm)
  • BELT WIDTH- 18” (457mm)
  • MAXIMUM OPERATING TEMP.- 6000 F (3160C)
  • BAKE TIME RANGE- 1-10 Min. or 3-30 Min.
  • WEIGHT- 333 KG

Optional Features

  •  Split belt – two 9”/229mm belts with individually adjustable speed settings
  •  76”/1930mm-long conveyor

Product Details

  •  Patented EMS Energy Management System, reduces gas consumption and increases cooking efficiency
  •  36” (914mm) long cooking chamber with 18”(457.2mm) wide 60”(1524mm) long conveyorbelt
  •  Stackable up to three high.
  •  Patented “Jet Sweep” impingement process that delivers constant heat to the chamber
  • Microprocessor-controlled bake time/conveyor speed
  •  Customer-specific adjustable jet fingers that allow control of heating zones in 8”(203mm)zones
  •  Stainless steel front, sides, top and interior
  •  Front-loading window with cool handle
  •  Reversible conveyor direction
